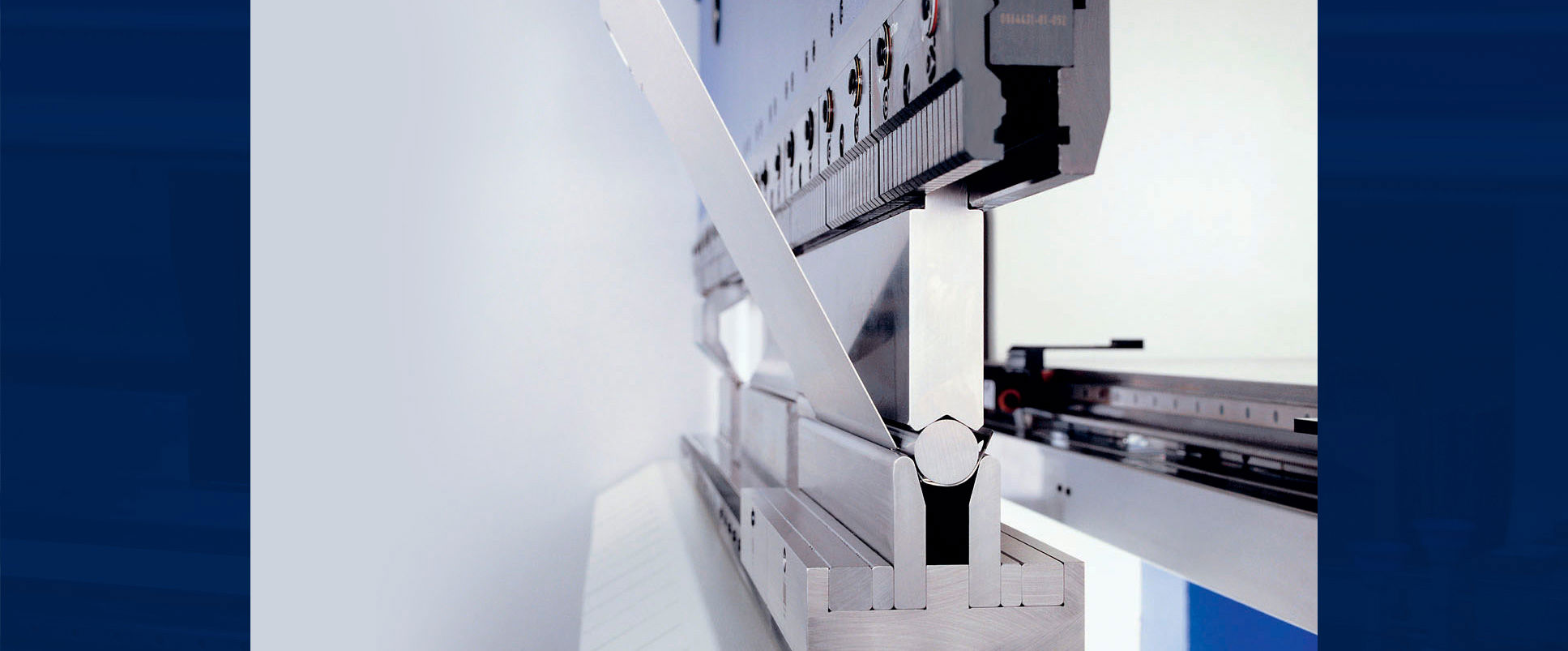

Press Brake Forming

Our CNC brakes are ideally suited for the forming of chassis, panels, brackets and many other components.

CNC Press Brakes

With tonnage to 144 tons and a maximum sheet length of 120".......

Trumpf V130

144 Ton

120" Max Bend Length




Trumpf C66

74 Ton

82" Max Bend Length




Trumpf 7036 High Speed

40 Ton

40" Max Bend Length




Amada RG-50

55 Ton

60" Max Bend Length




Robotic Press Brakes

The Trumpf Bendmaster with it's mechanical and vacuum grippers is capable of handling components weighing up to 88 pounds.  With a maximum component format of 40" x 80" and maximum profile for parts of 120" x 40", chassis with multiple bends are processed in minutes, with the first part exactly matching the last.  Our Bendmaster is also equipped with a 4 stack part carousel for smaller part production.



Trumpf 5130 with Bendmaster

144 Ton

120" Max Bend Length

Max workpiece weight 88#
